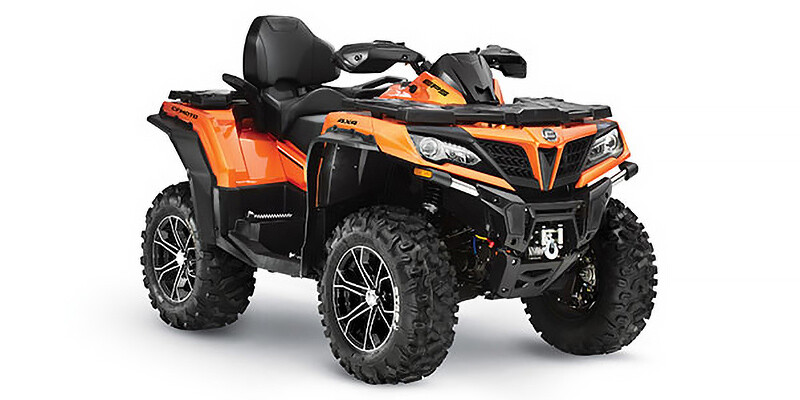

2023 CFORCE 800 XC

Specifications

• Engine

  add remove
  • Cylinders
    2
  • Horsepower (bhp)
    62
  • Torque (Ft Lbs)
    53
  • Cooling
    Liquid
  • Displacement (cc)
    800
• TRANSMISSION

  add remove
  • Transmission Type
    Continuously Variable (CVT)
  • Hi / Low Range
    Yes
  • Primary Drive (Rear Wheel)
    Shaft
  • Primary Drive (Engine / Transmission)
    Belt
  • Primary Drive (Front Wheel)
    Shaft
• TECHNICAL SPECIFICATIONS

  add remove
  • Width (in)
    48
  • Height (in)
    56.7
  • Wheelbase (in)
    58.3
  • Ground Clearance (in)
    11.2
  • Dry Weight (lbs)
    1058
  • Fuel Capacity (gal)
    7.3
  • Engine Displacement to Weight (cc)
    0.76
  • Towing Capacity (lbs)
    873
• SUSPENSION

  add remove
  • Rear Suspension Type
    Independent Double A-Arm
  • Number Rear Shock Absorbers
    2
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    26
  • Rear Tire Diameter (in)
    26
  • Front Tire Width
    9
  • Front Wheel Diameter
    14
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    CST 26 x 9 R14
  • Rear Tire (Full Spec)
    CST 26 x 11 R14
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
• Color options

  add remove
  • Lava Orange
  • Royal Blue
  • Ghost Gray
  • TrueTimber Camo
